5.5mm  Black Aluminum Window Spacer Bars In Double Glazing H26

5.5mm Black Aluminum Window Spacer Bars In Double Glazing H26

Product Details:

Place of Origin: China
Brand Name: UNEX
Certification: ISO, SGS
Model Number: 6A-27A

Payment & Shipping Terms:

Minimum Order Quantity: 1box
Packaging Details: box
Delivery Time: 20-25 work days
Get Best Price Contact Now

Detail Information

Name: High Quality Black Aluminum Spacer Bar For IG Color: Black And Customized
Size: 6A-27A Wall Thickness: 0.25MM
Packing: Box WeChat: 008613521196090
High Light:

5.5mm Aluminum Window Spacer

,

H26 Aluminum Window Spacer

,

black spacer bars in double glazing

Product Description

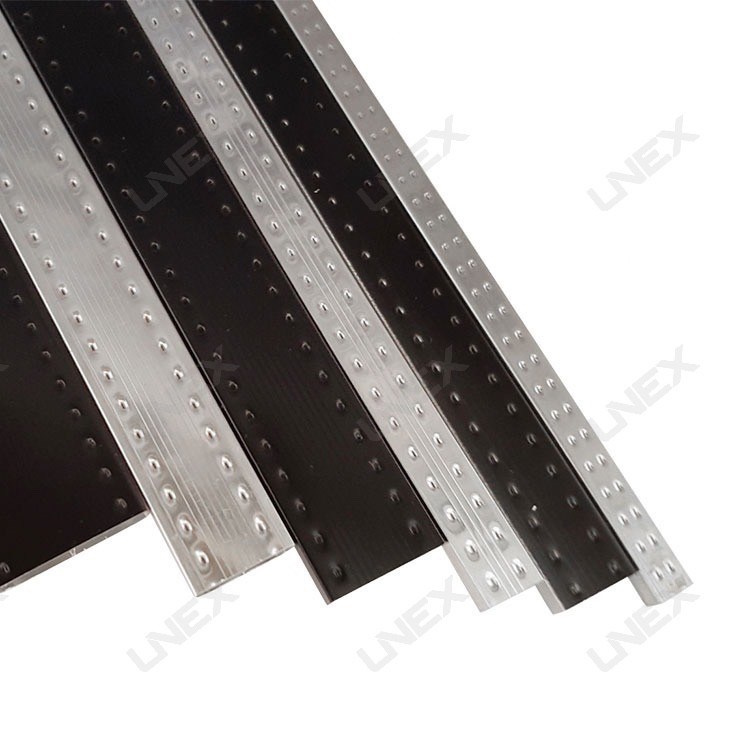

High Quality Black Aluminum Spacer bar for IG



Description:



Print aluminum window spacer bar produced by import from Gremany with the most advanced technology adopted European standard.

Unique surface treatment, better sealing properties with sealants.

High frequency induction welded, continuous welding seam quality monitoring by eddy system.

Nor Burr and no deformation after cutting, better for connected.

Marking LOGO as customer special requirement.



Technical Date Sheet:



ITEM SPECIFICATIONS NOTES
ALLOY 3003
TEMPER H26
THICKNESS (T) 0.20~0.35mm( Special requirements can be made) ±0.005mm
HEIGHT(H) 6.5mm ±0.1mm
WIDTH(W) 5.5mm ~26.5mm ±0.1mm
LENGTH 5M/6M (others are available as customer requriments) ±2mm
WELDER High Frequency Induction Welding
WELDING BOTTOM
COLOR SILVER
PACKING Standard Carton Box
OTHERS At equal intervals of 0.3m, customers' logo can be printed.



COMPOSITION OF RAW MATERIALS

ALLOY 3003

Si Fe Cu Mn Mg Zn Ti Cr Others Al
0.08 0.4~0.7 0.05~0.2 1.0~1.5 0.005 ≤0.005 0.01~0.02 0.15 the rest



ALLOY 3003H26 MECHANICAL PROPERTIES
Rm = Breakage Point ≥ 170 Rp = Yield Load ≥ 140
A = Elongation Percent ≥ 10



APPLICATION

5.5mm  Black Aluminum Window Spacer Bars In Double Glazing H26 0



5.5mm  Black Aluminum Window Spacer Bars In Double Glazing H26 1
