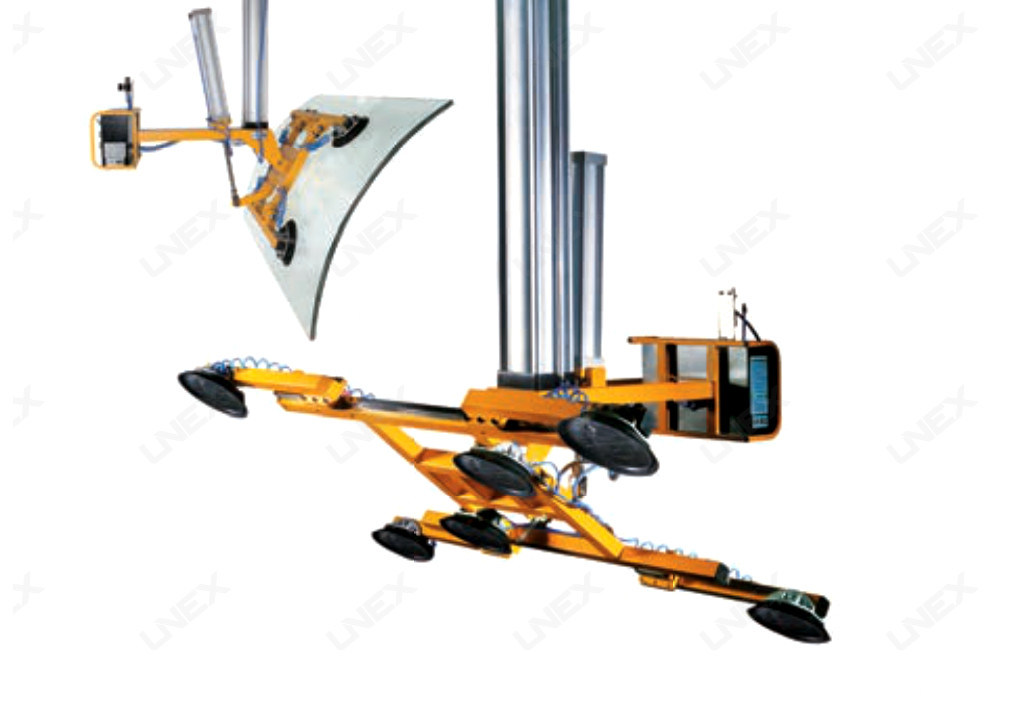

Pneumatic Vacuum Suction Cup Lifter 500kg For Tilting
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | UNEX |
| Model Number: | EL-250/400/500KG |
|
Detail Information |
|||
| NAME: | Pneumatic Vacuum Lifter For Tilting | ||
|---|---|---|---|
| High Light: | 500kg Suction Cup Lifter,1200mm Suction Cup Lifter,7bar Pneumatic Vacuum Lifter |
||
Product Description
|
参数Data 型号Model |
载重(Kg) Capacity Weight |
功能描述 Specification Description |
升降行程 Stroke |
供给方式Mode of Supply |
悬臂吊方式 Crane system |
|
CL |
250/400 |
真空发生器90º垂直旋转 Vacuum generation Vertical rotation 0-90º |
气缸升降800-2000mm 标准为:1200mm Option 800-2000mm/ standard length: 1200mm |
压缩空气6-7帕 6-7 bar |
墙壁式立柱式结构式 Wall or pillar slewing crane/ X-Y crane construction |
|
EL |
250/400/500 |
真空发生器90º卧立翻转 Vacuum generation Tilting 0-90º |
|||
|
CEL |
250/400/500 |
真空发生器 90º垂直旋转,90º卧立翻转Vacuum generation Vertical rotation 0-90º Tilting 0-90º |
|||
|
DEL |
400/500 |
真空发生器 90º垂直旋转,90º卧立翻转Vacuum generation Vertical rotation 0-90º Tilting 0-90º |
|||
|
REL |
400/500 |
真空发生器360º垂直旋转 90º卧立翻转 Vacuum generation Vertical rotationg at 360º Tilting 0-90º |
|||
|
RSE |
400/500 |
真空发生器 360º垂直旋转 小角度卧立翻转 Vacuum generation Vertical rotationg at 360º Small tilting and rotation |
