Rear Window Glass Enamels Paint Conductive Silver Paste Adhesion 200 Mesh
Product Details:
| Place of Origin: | China |
| Brand Name: | UNEX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 drum |
|---|---|
| Packaging Details: | steel drum 25kg/drum |
| Delivery Time: | 20-25 work days |
|
Detail Information |
|||
| Name: | Conductive Silver Paste For Rear Window Glass | Color: | Red-brown |
|---|---|---|---|
| Printing Type: | Screen Printing | Silk Screen Print: | 200-250mesh |
| Drying: | 150℃ /5mins | Storage: | 9 Months |
| High Light: | adhesion Glass Enamels Paint,200 mesh Glass Enamels Paint,5mins Rear window enamel paint |
||
Product Description

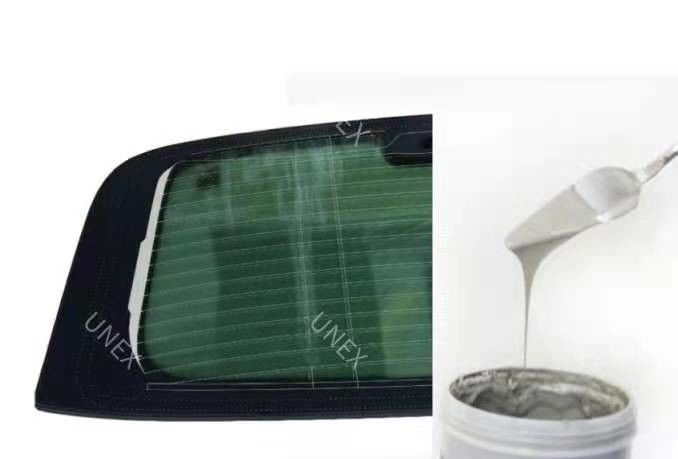

Conductive Silver Paste For Rear Window Glass

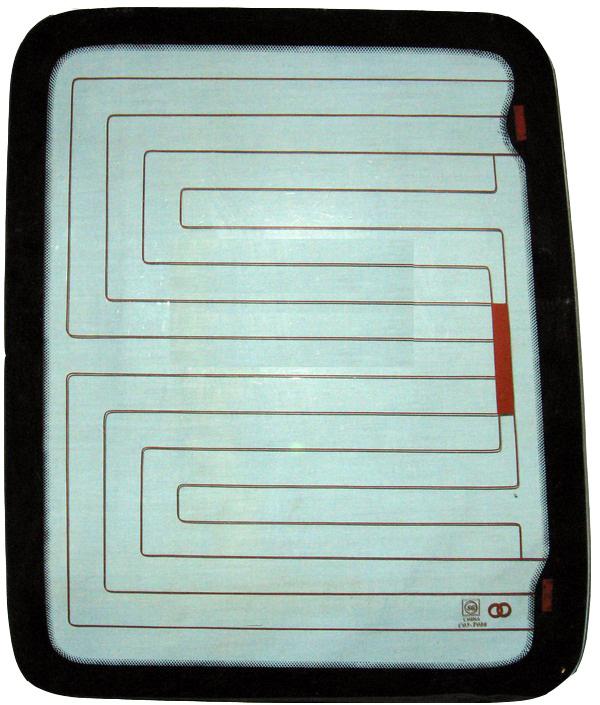

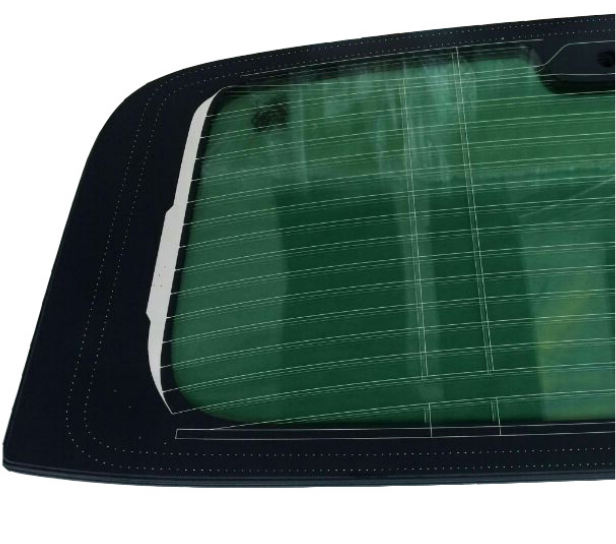

Applied on automotive glass for defrosting conductive silver line, with high adhension.
Technical Date:
| ITEM | PARAMETER |
| Color | Red-brown(tin side) |
| Silver content | 60-85%(can be adjusted) |
| Partical size | ≤7.5µm |
| Viscosity | 250±50 dPa .s/25±3℃(RION VT-04F) |
| Silk screen printing | 180-325目 |
| Resistance per square | ≤3mΩ/.@15μm(Can be adjusted) |
| Welding tension | ≥80N |
| Drying | 150℃/3-5min |
| Firing | 580℃-620℃/8-3min(Laminated) |
| 650℃-730℃/8-3min(Tempered) | |
| Shelf life | 9Months(Roon temperature) |
Application:
