Custom Cbn 0.125in Diamond Grinding Wheel For Pcd Polishing

Custom Cbn 0.125in Diamond Grinding Wheel For Pcd Polishing

Product Details:

Place of Origin: CHINA
Brand Name: UNEX

Payment & Shipping Terms:

Minimum Order Quantity: 1 BOX
Delivery Time: 20-30 work days
Get Best Price Contact Now

Detail Information

Name: Factory Custom Diamond CBN Grinding Wheels 1a1 Resin Bonded Grinding Wheel For PCD Polishing Thickness:: 0.125in, 0.093in, 1/2in, 0.156in
Wheel Type: Angle Grinding Wheels Keyword: Lat Edge Diamond Grinding Wheel
Type: Customized Material: Diamond
High Light:

pcd polishing diamond grinding wheel

,

0.125in diamond grinding wheel

,

0.125in resin bond grinding wheel

Product Description

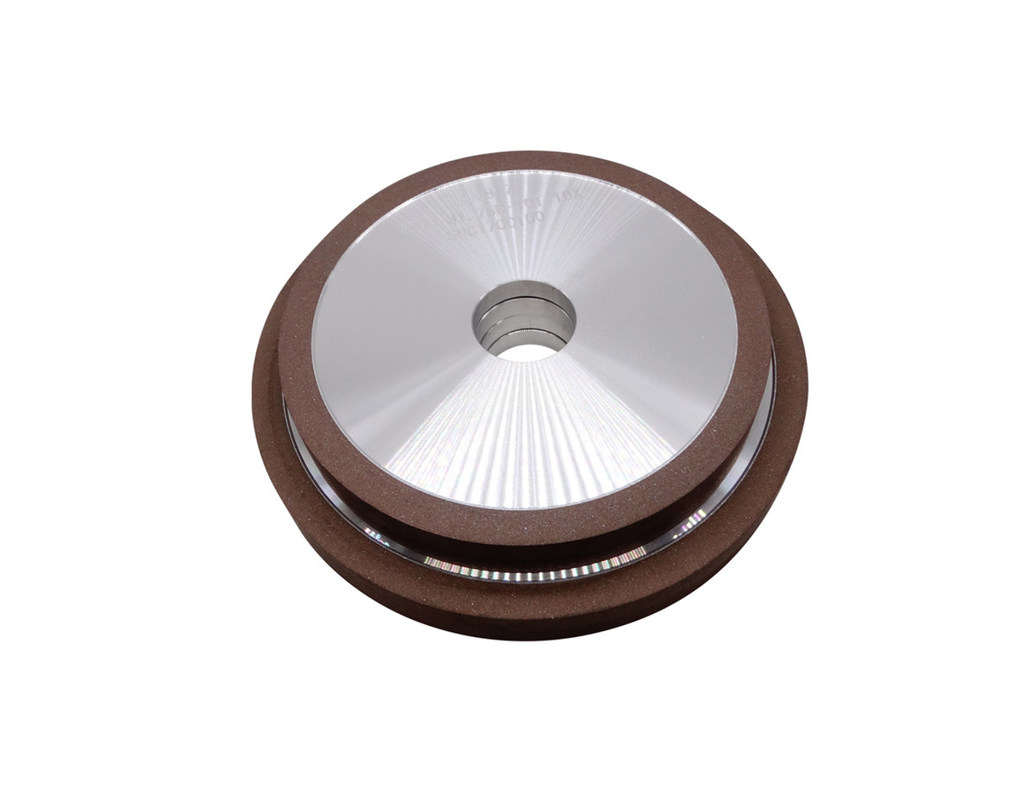

Factory Custom Diamond CBN Grinding Wheels 1a1 Resin Bonded Grinding Wheel For PCD Polishing



Description

Resin bond diamond grinding wheel is suitable for grinding metal and non-metal hard and brittle materials with low iron content,such as cemented carbide,high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.





Type
1A1 Flat resin bond diamond grinding wheel
Concentration
50%, 75% 100% 125% 150%
Mesh
46#, 60#, 80#, 100#, 120# (coarse grinding);
120#, 150#, 180#, 200#, 240# (medium grinding);
280#, 320#, 400#, 500#, 600# (fine grinding);
800#, 1000#, 1200#, 1500#, 2000#, 3000# (polishing)
Specification
( Specification sizes can be customized )
D75-H10-T5-X10 / D150-H19-X5-T5 / D125-T10-X10- H20/31.75 / D100-T10-X10- H20/31.75
D175-H127-X4-T5 / D250-H40-X10-T3 / D300-H127-X10-T40 / D350-H127-T20-X10 / D400-H127-T40-X10 / D500-H203-X10-T32
Application
Hard alloy, high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.

Custom Cbn 0.125in Diamond Grinding Wheel For Pcd Polishing 0

Custom Cbn 0.125in Diamond Grinding Wheel For Pcd Polishing 1
